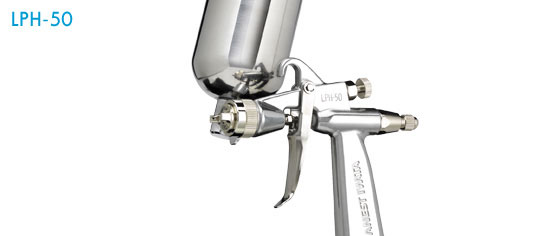

The LPH-50 LP is Iwata’s high-end spray gun featuring the gravity feed technology in the cup mounted on the side. The gravity feed cup allows you to work with small amounts of paint as easily as you can a full load due to the high volume, low-pressure feed. The spray gun’s pattern range, between 1/8 inch and 2.5 inches, and shape range, from round to full-fan, gives the unit the ability to work in a variety of mediums and applications from fine detailing work on cars to big, vibrant murals. The LPH-50 uses 1.8 cubic feet per minute of free air at 13 pounds per square inch for a powerful atomization and low-overspray.
The atomization comes from the nozzle, paint passage and needle, all made from stainless steel and heat-tempered for maximum durability.
The four-ounce paint cup rotates on a side-mount, giving the LPH-50 the ability to deliver precise control from any angle, even upside-down. The gravity feed design allows the LHP-50 to deliver a solid spray to the target medium with no spitting despite the volume of paint in the cup.
This unit uses easily adjustable air-valves. The cartridges are easily removable for quick servicing.
