AMACO Professional Kiln Series - AH-10 Kiln, three phase, 208V AC with Select Fire

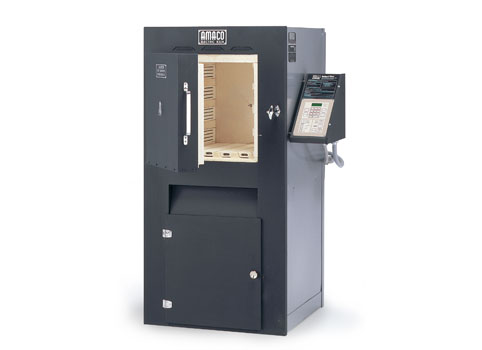

AMACO Professional Kiln Series - AH-10 Kiln, three phase, 208V AC with Select Fire AMACO's front-loading, three phase AH-10 model kiln features 208V AC and Select Fire controller. The unit provides the utmost ease and quality for firing and decorating all your favorite ceramics projects. If you're in the market for a durable, dependable kiln to furnish your art department or startup studio, look no further than AMACO's AH-10.

The furnace features thick 7 inch insulation, optimizing fire capacity but maintaining lower relative temperatures for ideal safety. The unit fires to Cone 10, which accommodates a variety of earthenware including the high temperature requirements of porcelain and stone. The chamber fits 3.28 cubic feet of space. The size is perfect for firing simultaneous pieces for your many students or studio goers.

The AH-10 unit is incredibly durable and includes 1/8" back steel frames, 11 gauge front steel frames, and 18 gauge steel shells, all welded for longevity. The refractory-supported steel doors close tightly but swing open easily. This makes the kiln secure but still effortless to use, eliminating the risk of common back injury. Top-of-the-line Kanthal element wires can be removed from holders for cleaning when necessary.

AMACO's AH-10 three phase 208V AC with Select Fire kiln comes with a five year warranty, free glaze starter kit, and can be attached to a convenient storage cabinet if desired (sold separately). It's the perfect solution to all your small- to medium-sized ceramics needs.

AMACO AH-10/AH-10SF CERAMIC KILN SPECIFICATIONS
Power Leads Required..........6 gauge copper wire
Voltage .......................................208 or 240 Volts
Amp Rating...............35.1 (208V Single Phase)
.............. ..........22.1 (208V Three Phase)
.........................30.4 (240V Single Phase)
.........................17.6 (240V Three Phase)
Kilowatt Rating........................7.3
Power Cord ...............................50 amp with NEMA 6-50 or
15-50 plug for AH-10 with
Select Fire
Direct wire for AH-10 with
Infinite Switches and
Sitter/Timer
Exterior Dimensions...37 1/2 " W x 37 3/4 " D x 60" H
(width includes Select Fire)
Exterior Dimensions
(door open)................37 1/2 " W x 56" D x 60" H
6-50
Single Phase
15-50
Three Phase
NEMA Receptacle Plugs
Firing Chamber
Inside Dimensions..........15" W x 21" D x 18" H
Firing Chamber Capacity.....3.28 cubic feet
Firing Speed Control .............SelectFire™ Computer Control
or Infinite Switches
Maximum Temperature........2381º
F, 1305º
C - Cone 10
Elements....................................12 Kanthal High Temp. Coils
Shipping Weight.....................777 lbs.
Kiln should be vented to the outside using the AMACO®
Master KilnVent and up to 60 feet of 4" diameter duct
material—galvanized furnace ducting, flexible
aluminum ducting or PVC (maximum four 90º
turns).
Kiln must be 18" from any wall. Do not place kiln on
flammable surfaces or near flammable materials.
