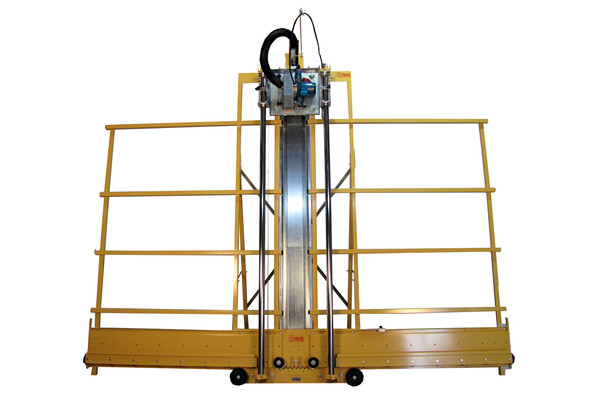

With this SAWTRAX 1076 10' wide frame (1000 Series Pkg) equipment, it is easy to make cross cuts, ranging from 52 to 100 inches. Rip cuts are possible in either direction. Bevel cuts are up to 45 degrees. Accuracy is .0156 inches. The depth of the cut is controllable and variable up to 1-3/4 inches. A router fits in the carriage if desired.
The alignment system is Accu-square making perfect cuts easier.
The system for the roller bearing is sealed for long-time usage.
The 10-foot wide frame, constructed from steel, has a nice powder coat finish for protection.
The stand folds up and the frame has wheels for easy mobility.
The guide tubes are 3/4” in diameter, which have a 1/8” wall, and are plated with nickel chrome for durability.
The system has a stop bar, which extends to accommodate different sizes.
Measurement is easy with horizontal and vertical measuring tapes.
Dual rip gauges and strip support plus a mechanism for retraction and a removable tool plate, accommodate a variety of cutting needs.
The saw is a three-horsepower Porter Cable Saw, secured by a spring-loaded counter balance, has an 18-tooth carbide-tipped blade and saw cord holder.
A blade lock allows easy saw blade changes.
Replacement blades are the standard size of 7 1/4”, easily purchased anywhere.
Two carriage locks hold everything securely in place.
The saw cover has two ports, one for dust, and the other for viewing to see both the marking on the materials and the cut, allowing for great accuracy.
Dust collects with the help of a dust shroud brush with a 2.5” hose that is twelve feet long and has a coupler for easy connection to a disposal system.
There are eighteen material rollers, made from tough injection-molded plastic, housed in a steel hub.
